China Silk screen printing wooden handle squeegee blade factory and manufacturers

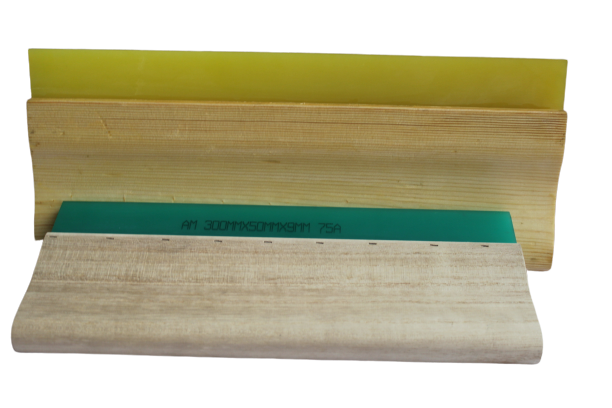

Silk screen printing wooden handle squeegee blade

Short Description:

Squeegee is one kind of tool that used to scratch the ink on the screen to make it leak to the substrate. Use for both graphic and textile applications, for all hand printing and many machine applications.

Rubber Material: 100% Polyurethane

Handle Material: pine

technology: Spray paint

Handle length: 4-32inch or customized

Rubber squeegee size(width*thickness): 50×9mm and Customized

Color: primary colors yellow

Hardness: 50-95A

Shapes: square,round,V-shaped or customized

Send email to us Download as PDF

Product Detail

Product Tags

-Built rugged of rubber blade and lumber handle.

- Ergonomic style straight handle is designed for comfort.

- Excellent abrasion and solvent resistance.

- Mold by high heat and pressure ensures its durability.

- Size and color are customizing.

Advantages of Pine Handles

-Pine has strong bending and compression resistance, good elasticity and air permeability, good moisture resistance, corrosion resistance and durability.

-Through scientific and humanized design, the product enlarges its size and is easier to master and use.

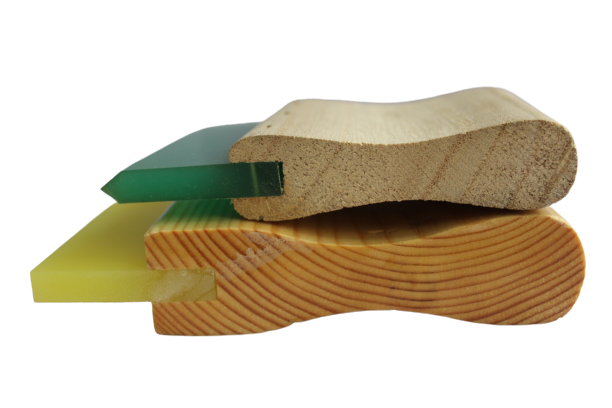

-The wood handle and the rubber scraper are bonded by glue, and the workmanship is fine, firm and practical.

-Painting surface design, so that products can be long-term preservation and use

Comparing with other products

-Pine wood has better quality and finer workmanship than other materials

-The wooden handle of other products is combined with the staple for scraping, which damages the material quality.

-Other materials are smaller and softer.

product	size	squeegee	hardness
Wooden handle squeegee blade	5 in10 in11 in12 in13 in14in16in…	307mm357mm407mm507mm409mm509mm…	50-95shore A

soft	50—65ShoreA	Red or natural	Suitable for the low mesh screen cloth, low viscosity ink, irregular surface of the printing.
Medium	70-75ShoreA	Green or natural	Suitable for various of mesh screen cloth, various of ink and various of the prints.
Hard	80—85ShoreA	blue or natural	Suitable for high pressure, high viscosity ink, the fine print of the printing
Super hard	90—95ShoreA	white
Triple medium	75/90/75ShoreA	green/white/green	Suitable for various of mesh screen cloth, various of ink and various of the prints.
Soft medium	65/90/65ShoreA	red/white/red	Suitable for the low mesh screen cloth, low viscosity ink, irregular surface of the printing.
