China screen printing uv exposure unit machine factory and manufacturers

screen printing uv exposure unit machine

Short Description:

Exposure machine is one of the corollary equipment of Screen printing production line.With its plate copying, picture can be transfered from film to screen perfectly.

Model number: JM-EMLED6090

Max.working area: 600*900mm

Power : 110V/220V 50Hz, 380W

Light source: UV light

Send email to us Download as PDF

Product Detail

Product Tags

JM-EMLED6090 screen printing exposure machine

The plate printing machine is a contact exposure imaging device used to make printing plates. It uses pressure (including atmospheric pressure and mechanical pressure) to make the original plate and the photosensitive plate closely fit, so that the image on the original plate can be accurately exposed through photochemical reaction. Made on a photosensitive plate. The printing machine is mainly composed of light source device, exposure chamber, vacuum chamber, electrical parts, machine base and other parts.

Specification

Model	Power	Max.working area	Feature
JM-EMLED6090 New Vacuum Exposure Unit	110V/220V50Hz, 380W	600900mm24″ 36″	• Light source:UV light • Lamp power*amount: 160pcs/380W • Digital display of exposure time setting • Volume Weight : 98KGS

Model	Power	Max.working area	Feature
JM-EMLED5060 New Vacuum Exposure Unit	110V/220V50Hz, 180W	480580mm, 20″ 24″888124cm	• Light source:UV light• Lamp power*amount: 80pcs /180W• Digital display of exposure time setting• Gross Weight : 43KGS
JM-EMLED6075 New Vacuum Exposure Unit	110V/220V50Hz, 220W	600750mm, 24″ 30″1128423cm	• Light source:UV light• Lamp power*amount: 120pcs/ 220W• Digital display of exposure time setting• Gross Weight : 60KGS
JM-EMLED6090 Big Vacuum Exposure Unit	110V/220V50Hz, 380W	600900mm24″ 36″	• Light source:UV light• Lamp power*amount: 160pcs/380W• Digital display of exposure time setting• Volume Weight : 98KGS
JM-EMLED70100 Vacuum Exposure Unit	220V/50Hz, 900W	7001000mm 28″ 40″	• Light source:UV light• Glass Dimension : 900 x 1200mm • Glass thickness : 10mm • Vacuum degree : 0.05mpa. • Machine Dimension : L1200 x W900 x H900mm • Volume Weight : 100KGS

Main Features

1. Rational design & easy operation: based on humanity and practicality principles, with the elaborate designed table type structure, it’s much easier for screen exposure with high precision.

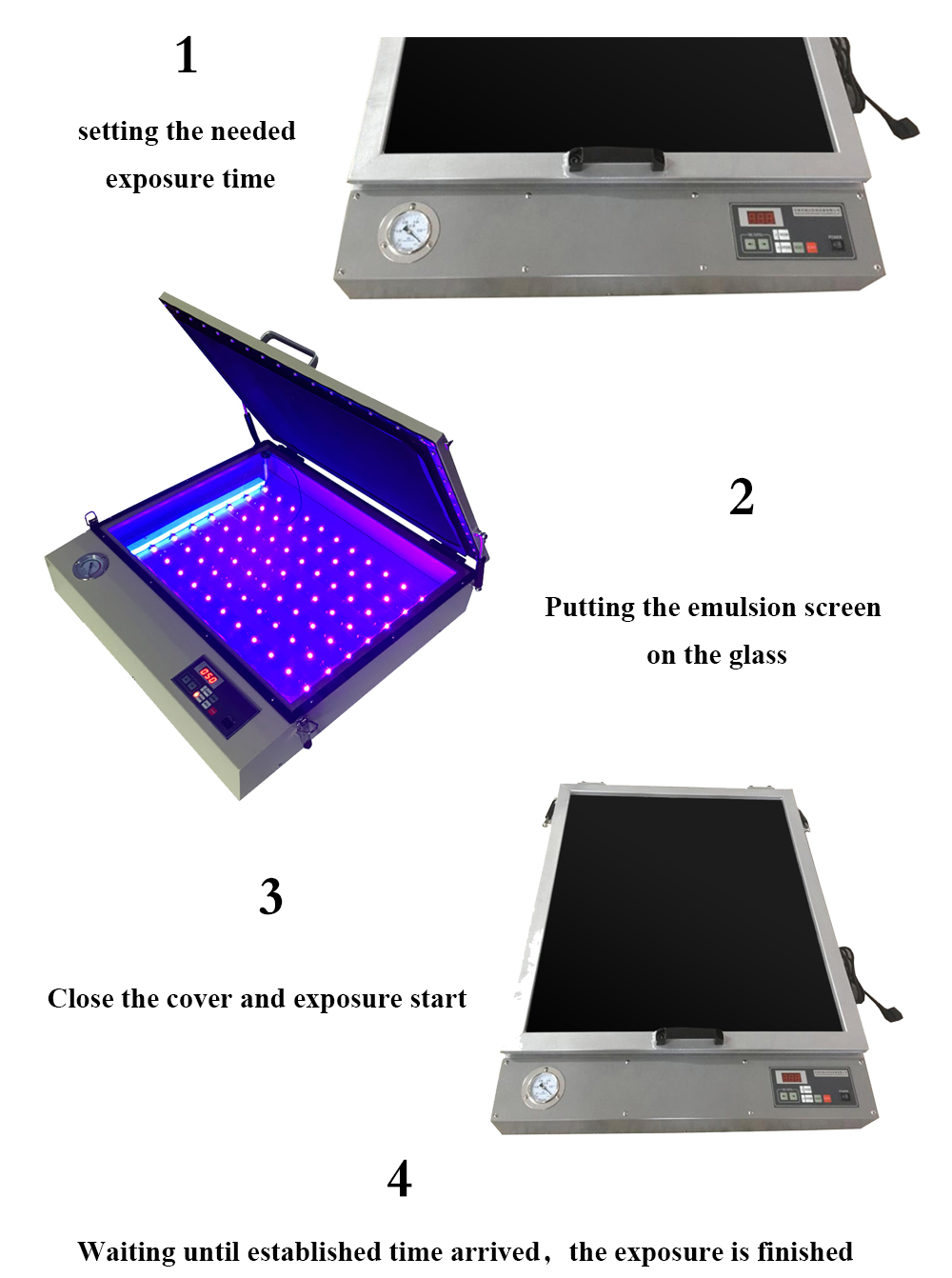

2.Independement settings of vacuum and exposure time with automatic memory function: The vacuum time and exposure time can be set up separately just according to actual requirements (setting ranges: 0-999 seconds); When exposure is finished, the power supply of the lamp will be automatically cut off, it will deflate and beep by itself, then please turn it off. When you need exposure again, just connect the power supply, then it will work automatically according to your former settings because of its automatic memory function.

3.Oilless vacuum pump with high quality is durable with no need for oil injection.

4. The high strength toughened glass (thickness: 0.24”/6mm) is with high press resistance and not easily scratched. Besides, once broken, it will turn into pieces without sharp edges to avoid user’s injury.

5.All-metal construction & elegant appearance with advanced electrostatic paintings, easy to clean and no rust.

6.Excellent packing in study wooden case as a whole will guarantee a easy and safety transportation.
