Screen Printing Mesh
Specifications
|
polyester silk screen printing mesh fabric |
|
|
Weave type |
plain |
|
Material |
100% polyester, stainless steel wire |
|
Monofilament Style |
Yes |
|
Width |
0.6-3.65m |
|
Mesh Count |
18-420 mesh/inch |
|
Thread Diameter |
27-350 micron |
|
Mesh Opening |
25-1068 micron |
|
Thickness |
46-693 micron |
|
Printing |
polyester screen printing, silk screen printing |
|
Type |
mesh fabric |
|
Elasticity |
low |
Detail Specification of screen printing mesh
| model | mesh count |
APERTURE | THREAD DIAMETER |
OPENING | thickness | INK THROUGH VOLUME THEORETICALLY |
| mesh/inch | micron | micron | % | micron | cm3/m2 | |
| 24-100 | 60 | 316 | 100 | 57 | 136-145 | 64.4 |
| 32-100 | 80 | 212 | 100 | 46 | 145-155 | 69 |
| 39-55 | 100 | 195 | 55 | 56 | 88-96 | 55.0 |
| 43-80 | 110 | 147 | 80 | 40.8 | 7-132 | 53 |
| 47-55 | 0 | 152 | 55 | 51 | 88-96 | 47.6 |
| 48-70 | 0 | 135 | 70 | 41 | 108-120 | 45.5 |
| 54-55 | 135 | 8 | 55 | 47 | 88-96 | 44.5 |
| 54-64 | 135 | 115 | 64 | 38.5 | 95-105 | 38.9 |
| 54-70 | 135 | 108 | 70 | 34 | 108-120 | 40 |
| 64-45 | 160 | 105 | 48 | 43 | 73-82 | 36.5 |
| 64-55 | 160 | 98 | 55 | 38 | 85-95 | 36.1 |
| 64-64 | 160 | 88 | 64 | 30 | 95-105 | 30.7 |
| 72-45 | 180 | 92 | 45 | 40 | 68-76 | 33.1 |
| 72-48 | 180 | 90 | 48 | 36 | 75-84 | 33.1 |
| 72-55 | 180 | 81 | 55 | 30 | 88-97 | 26.6 |
| 80-45 | 200 | 75 | 45 | 36 | 65-74 | 27.7 |
| 80-48 | 200 | 72 | 48 | 33 | 75-84 | 28.7 |
| 90-48 | 230 | 56 | 48 | 25 | 77-85 | 23.5 |
| 100-40 | 250 | 58 | 40 | 33 | 62-71 | 21.3 |
| 110-40 | 280 | 48 | 40 | 27 | 65-71 | 18.4 |
| 110-34 | 280 | 54 | 34 | 35.5 | 52-57 | 20.2 |
| 0-34 | 305 | 45 | 34 | 30.5 | 52-57 | 18.4 |
| 140-34 | 355 | 31 | 34 | 19.5 | 56-62 | 14.4 |
| 150-31 | 380 | 36 | 31 | 29 | 43-47 | 13.1 |
| 150-34 | 380 | 30 | 34 | 20.5 | 56-62 | 14.9 |
| 165-31 | 420 | 31 | 31 | 23 | 52-58 | 12.88 |
Specifications
High tensile Polyester silk screen printing mesh is professionally used for printing .

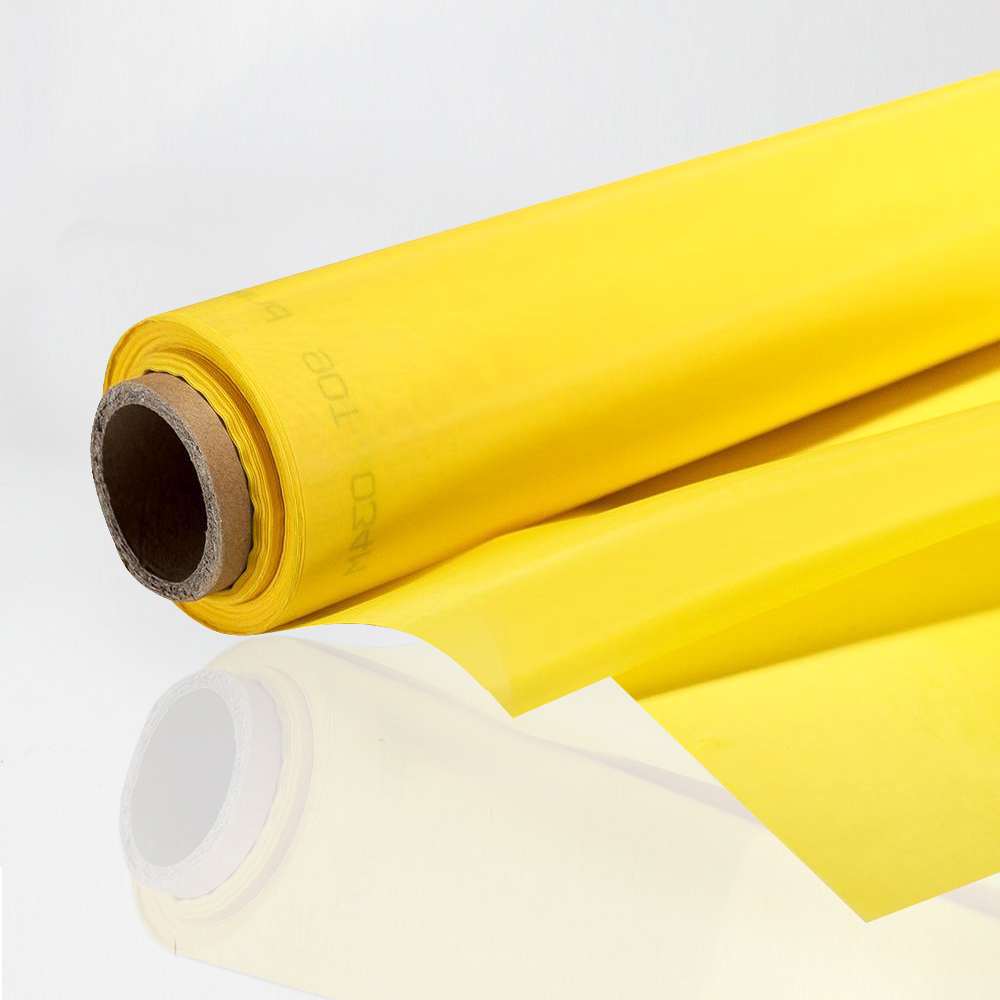

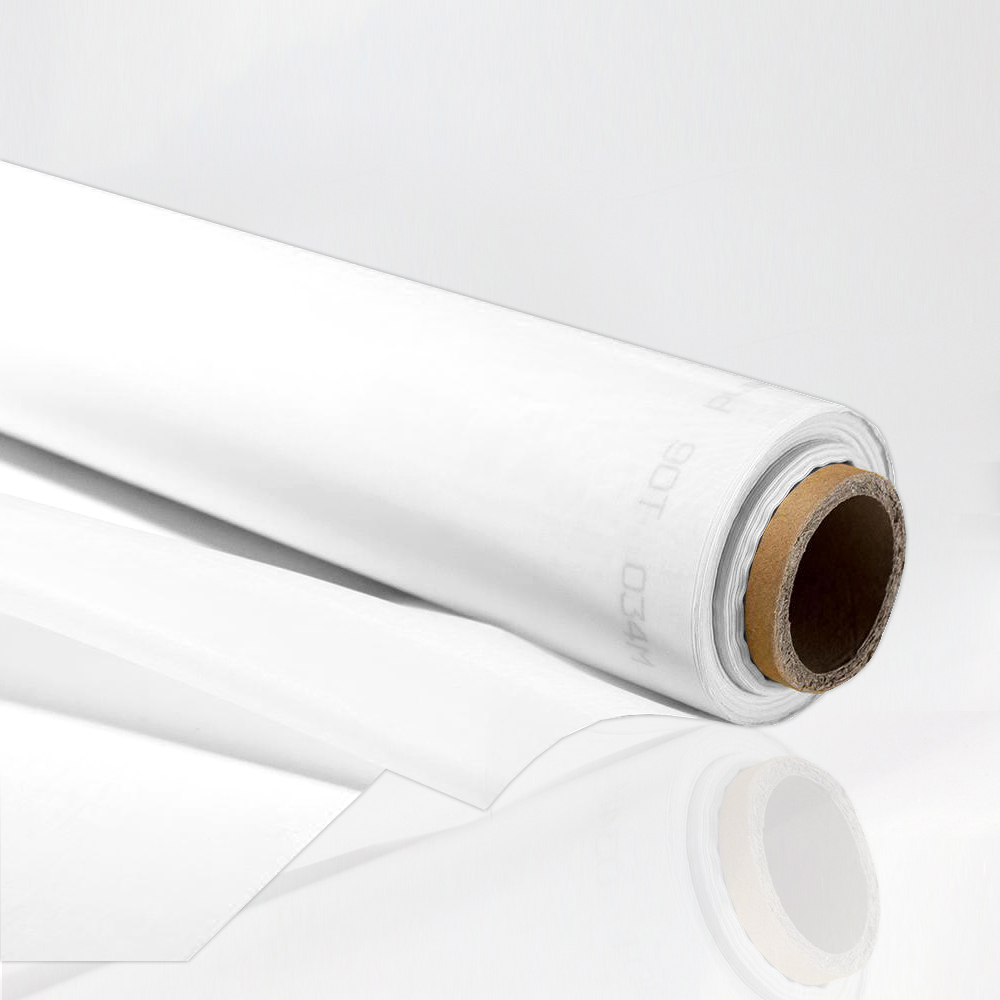

1.colour:white&yellow
2.high tension,low elongation
3.standard mesh
4.Tension stabilization without damage to the threads
5.Improved fabric strength
6.Higher tension threshold and breaking point
7.Less tension loss during the stretching process
About us
Jiamei wangyin Co.,ltd is a profession manufacturer with more than 10 years
experience in printing mesh field, mesh count from 80-420 / DPP32-DPP165 in white, black ,yellow or up on your require. We are a factory specializing in the manufacture and export mesh fabric, main products include screen printing mesh (white&yellow).
Polyamide fabric, polyester fabric and monolilament polyester fabric are the most advanced high-tech fabric products in 1990s. With imported Switzerland P7100 intelligent electronic warping machine and internal first-class test equipment, we produce superior polyamide fabric for screen printing. The screen printing mesh with precise opening, flat appearance, standard mesh and precise filtration value.
Screen Printing Mesh Application
Costume screen printing: T-shirt screen printing, Fashion screen printing, Sportswear screen printing, Swimwear screen printing, etc.
Luggage, Shoes and Hats screen printing: Computer Bag screen printing, Handbags screen printing, Shopping bags screen printing, Luggage screen printing, Wallets screen printing, composite packaging materials screen printing, Canvas Shoes screen printing, hat/cap screen printing, etc.
Home Textiles screen printing: Scarves screen printing, Pillow screen printing, Tablecloths screen printing, Sleeping Bags screen printing, Bedclothes screen printing, Curtains screen printing, Seat screen printing, etc.
Advertising Gifts screen printing: Mouse Pad screen printing, Textile Slippers screen printing, Coasters screen printing, Bar Cushion screen printing, Paintings screen printing, Flags screen printing, Umbrella screen printing, etc.
Outdoor products screen printing: Tents screen printing, Beach Chairs screen printing, Sun Shade screen printing, etc.
