JM-EMLED5060 Led exposure unit Series
The plate printing machine is a contact exposure imaging device used to make printing plates. It uses pressure (including atmospheric pressure and mechanical pressure) to make the original plate and the photosensitive plate closely fit, so that the image on the original plate can be accurately exposed through photochemical reaction. Made on a photosensitive plate. The printing machine is mainly composed of light source device, exposure chamber, vacuum chamber, electrical parts, machine base and other parts.
Specification
|
Model
|
Power |
Max.working area |
Feature |
| JM-EMLED5060 New Vacuum Exposure Unit |
110V/220V50Hz, 180W |
480*580mm, 20″ * 24″88*81*24cm |
• Light source:UV light• Lamp power*amount: 80pcs /180W• Digital display of exposure time setting• Gross Weight : 43KGS |
| JM-EMLED6075 New Vacuum Exposure Unit |
110V/220V50Hz, 220W |
600*750mm, 24″ * 30″112*84*23cm |
• Light source:UV light• Lamp power*amount: 120pcs/ 220W• Digital display of exposure time setting• Gross Weight : 60KGS |
| JM-EMLED6090 Big Vacuum Exposure Unit |
110V/220V50Hz, 380W |
600*900mm24″ * 36″ |
• Light source:UV light• Lamp power*amount: 160pcs/380W• Digital display of exposure time setting• Volume Weight : 98KGS |
| JM-EMLED70100 Vacuum Exposure Unit |
220V/50Hz, 900W |
700*1000mm 28″ *40″ |
• Light source:UV light
• Glass Dimension : 900 x 1200mm
• Glass thickness : 10mm
• Vacuum degree : 0.05mpa.
• Machine Dimension : L1200 x W900 x H900mm
• Volume Weight : 100KGS
|
Main Features
1. Rational design & easy operation: based on humanity and practicality principles, with the elaborate designed table type structure, it’s much easier for screen exposure with high precision.
2.Independement settings of vacuum and exposure time with automatic memory function: The vacuum time and exposure time can be set up separately just according to actual requirements (setting ranges: 0-999 seconds); When exposure is finished, the power supply of the lamp will be automatically cut off, it will deflate and beep by itself, then please turn it off. When you need exposure again, just connect the power supply, then it will work automatically according to your former settings because of its automatic memory function.
3.Oilless vacuum pump with high quality is durable with no need for oil injection.
4. The high strength toughened glass (thickness: 0.24”/6mm) is with high press resistance and not easily scratched. Besides, once broken, it will turn into pieces without sharp edges to avoid user’s injury.
5.All-metal construction & elegant appearance with advanced electrostatic paintings, easy to clean and no rust.
6.Excellent packing in study wooden case as a whole will guarantee a easy and safety transportation.

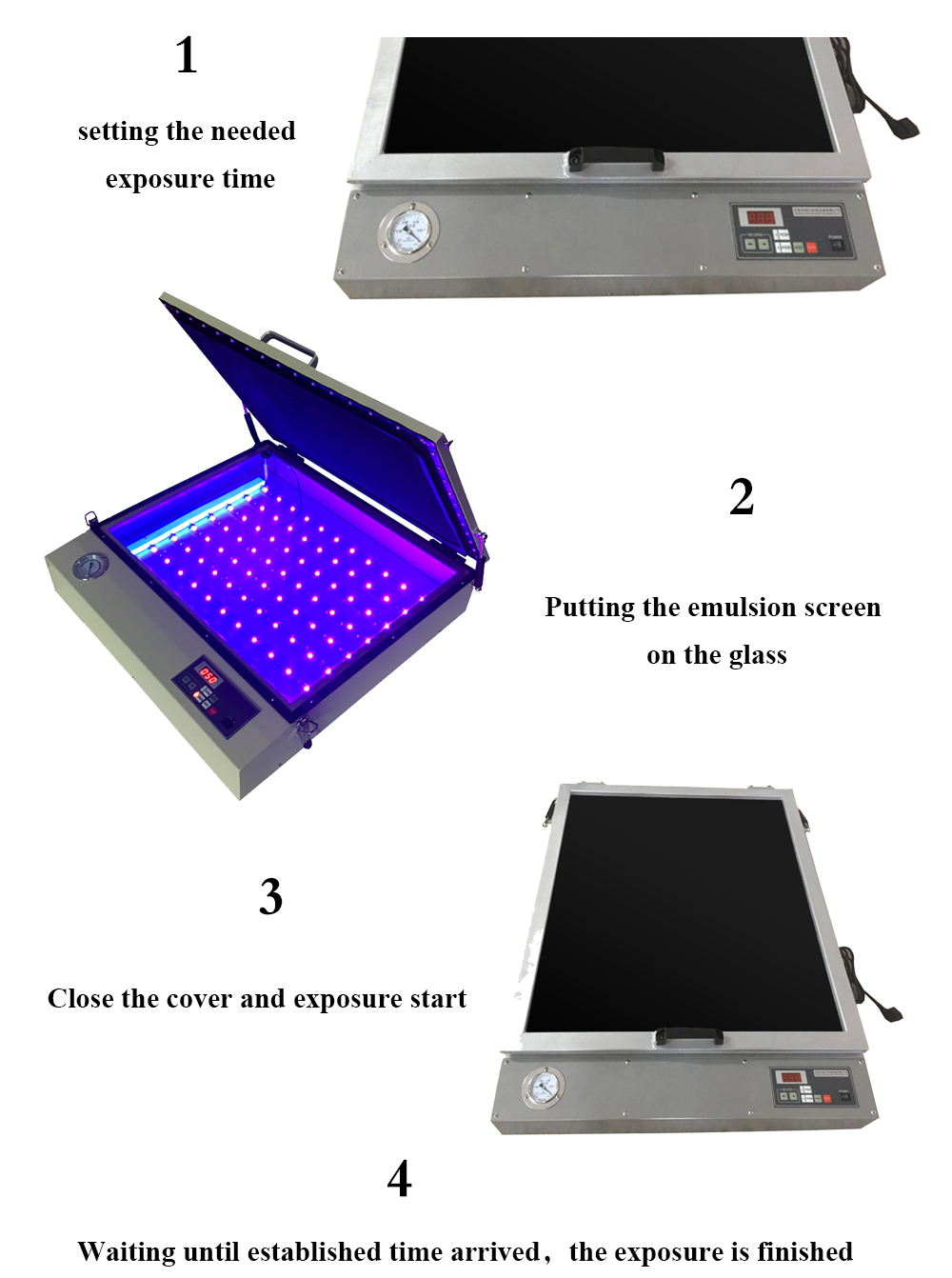

Working Principle
Advantage
1. Choose high quality metal halid lamp. keep long life.
2. Reflect cover made by resist aging materials.
3.It can reach the vacuum state instantly, and save time for printing
4. Exposal time auto adjustment and controlling.
5. High vacuum degree, easy to transfer and copy fine lines
6. Automatic door of lamp shut off and turn on when exposure and finish ensure long life of lamp
7. High toughness Rubber Layer ensure Film closely cover with frame
8. We also can supply the different size of screen printing machine according to customer’s requirement
