Aluminum emulsion scoop coater
Short Description:
1.Easy and comfortable handing.
2.Easy to cleanup.
3.Holds more emulsion , Less time refilling & More screens coated,
4. Chemical-resistant due to its Oxidation surface.
5. Each side can be used in emulsion coating process with different thickness.
6. Included with the coater is injection molded ends with a full snap-on dust shield to prevent any particles from mixing in with your emulsion.
7.Size can be customized according to customer demand
FILL THE COATER: Under a safe yellow light source, pour emulsion from its container .
Allow the emulsion to flow out to an even level. Make sure you have enough to coat in one stroke.
COAT THE SCREEN: Use the rounded edge of a scoop coater to apply an even coat of emulsion in one pass.
The coater should be at least two inches shorter that the narrow width of your screen.
Apply one coat of emulsion to the printing side, then one coat on the squeegee side. Dry the screen thoroughly.
CLEAN THE COATER: Scrape extra emulsion back into its container.
Cover the container. Wash out remaining emulsion with water.
Any remaining emulsion that dries in the coater can be very difficult to remove.
Store the coater where the edged can’t be nicked.
Aluminum emulsion scoop coater
Emulsion scoop coater is a necessary tool for coating screens with all direct liquid emulsions.

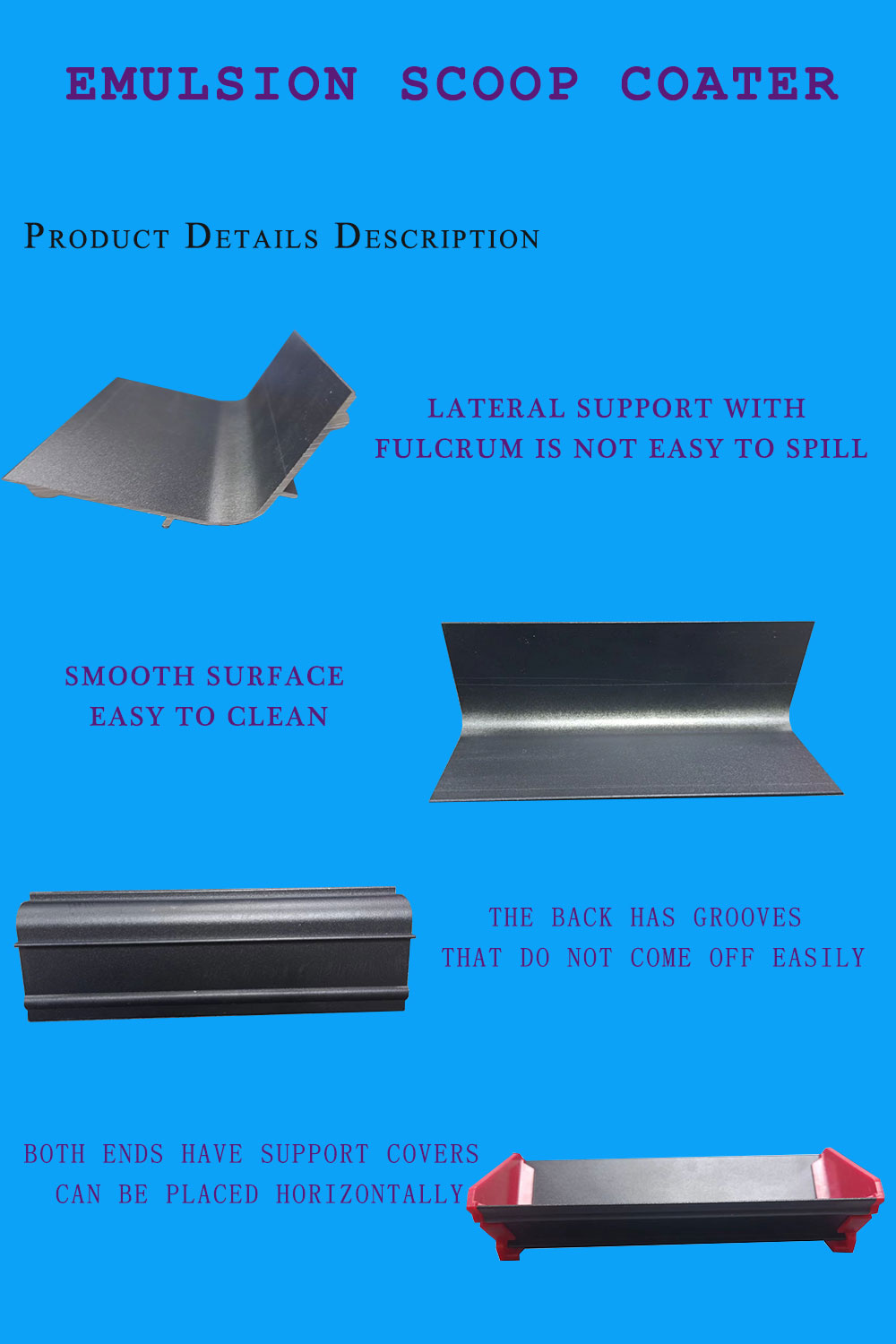

made of durable aluminum alloy with plastic end cap guides, it will give you a nice even coat when applied with this emulsion scoop coater. Designed for easy grip, application, and cleanup.
Also easy to hold, sit easily on flat surface between coats
Aluminum emulsion scoop coater,used for load and scrap emulsion,Large capacity design to ensure more emulsion can be loaded.Can be used for wide frame and precision printing.

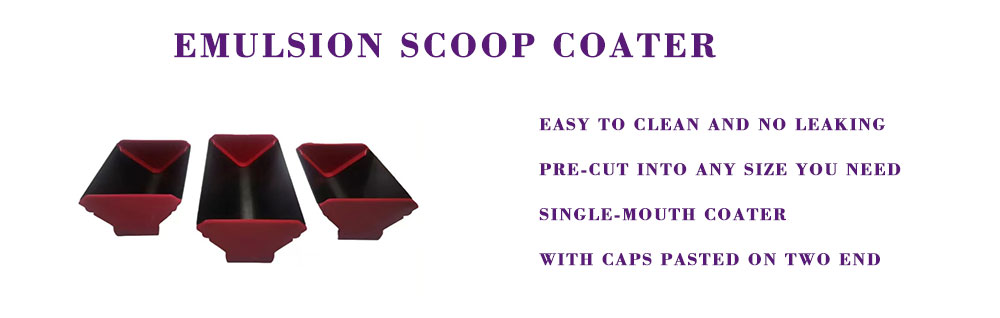

V shape aluminum emulsion scoop coater,a total new design,more emulsion can be loaded, good handling,easy to operation,can be used both two side.
a sharp edge for thin coats on higher mesh screens, and a rounded dull edge for coating lower mesh screens or for coating heat transfers. They hold a good amount of emulsion for lengthy coating sessions.
Choose the right Size :
It is usually best to get an emulsion scoop coater about 2-3 inches narrower than the inside screen frame width.
14 Inch –OD18″ ×20″ screens.
16 Inch –OD20″×24″ screens .
18 Inch –OD 23″×31″ screens.
20 Inch –OD25″×36″ screens.
Feature:
- Easy and comfortable handing.
- Easy to cleanup.
- Holds more emulsion , Less time refilling & More screens coated,
4. Chemical-resistant due to its Oxidation surface.
5.Each side can be used in emulsion coating process with different thickness.
6.Included with the coater is injection molded ends with a full snap-on dust shield to prevent any particles from mixing in with your emulsion.
7.Size can be customized according to customer demand
HOW TO USE & CLEAN UP:
FILL THE COATER: Under a safe yellow light source, pour emulsion from its container . Allow the emulsion to flow out to an even level. Make sure you have enough to coat in one stroke.
COAT THE SCREEN: Use the rounded edge of a scoop coater to apply an even coat of emulsion in one pass. The coater should be at least two inches shorter that the narrow width of your screen. Apply one coat of emulsion to the printing side, then one coat on the squeegee side. Dry the screen thoroughly.
CLEAN THE COATER:
Scrape extra emulsion back into its container. Cover the container. Wash out remaining emulsion with water. Any remaining emulsion that dries in the coater can be very difficult to remove. Store the coater where the edged can’t be nicked.
Application:
